Coriolis flowmeter – Proline Promass



Field of application

Promass F has a long-standing reputation as a highly accurate sensor. Immune to fluctuating and harsh environments, it is suited for the broadest range of applications. With its compact transmitter Promass F 300 offers high flexibility in terms of operation and system integration: access from one side, remote display and improved connectivity options. Heartbeat Technology enables measurement reliability and extension of recalibration cycles.

  • Measuring principle operates independently of physical fluid properties such as viscosity or density

  • Highest measurement performance for liquids and gases under varying, demanding process conditions.

Device properties

  • Mass flow: measurement error ±0.05 % (PremiumCal)

  • Medium temperature: -196 to 350 °C (-320 to 662 °F)

  • Nominal diameter: DN 8 to 250 (³⁄₈ to 10″)

  • Compact dual-compartment housing with up to 3 I/Os

  • Backlit display with touch control and WLAN access

  • Remote display available



Benefits
  • Highest process safety – immune to fluctuating and harsh environments

  • Fewer process measuring points – multivariable measurement (flow, density, temperature)

  • Space-saving installation – no in-/outlet run needs

  • Full access to process and diagnostic information – numerous, freely combinable I/Os and Ethernet

  • Reduced complexity and variety – freely configurable I/O functionality

  • Integrated verification – Heartbeat Technology.



Reference:

Electromagnetic flowmeter – Proline Promag



Field of application

Promag P is dedicated to chemical and process applications with corrosive liquids and highest medium temperatures. With its compact transmitter Promag P 300 offers a high flexibility in terms of operation and system integration: access from one side, remote display and improved connectivity options. Heartbeat Technology enables compliance and process safety at all times.

  • The bidirectional measuring principle is virtually independent of pressure, density, temperature and viscosity.

  • Dedicated to chemical and process applications with corrosive liquids and high medium temperatures.

Device properties

  • Nominal diameter: max. DN 600 (24″)

  • All common Ex approvals

  • Liner made of PTFE or PFA

  • Compact dual-compartment housing with up to 3 I/Os

  • Backlit display with touch control and WLAN access

  • Remote display available.



Benefits
  • Diverse applications – wide variety of wetted materials.

  • Energy-saving flow measurement – no pressure loss due to cross-section constriction.

  • Maintenance-free – no moving parts.

  • Full access to process and diagnostic information – numerous, freely combinable I/Os and Ethernet.

  • Reduced complexity and variety – freely configurable I/O functionality.

  • Integrated verification – Heartbeat Technology.



Reference:

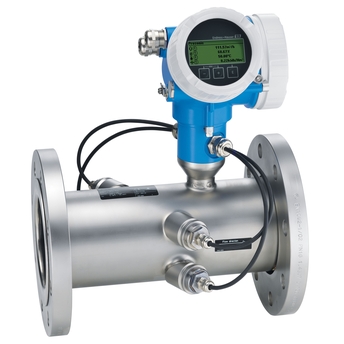

Ultrasonic flowmeter – Proline Prosonic

Field of application

Prosonic Flow B 200 is the specialist for accurate and reliable measurement of wet biogas and digester gas,even under fluctuating process conditions. With its unique integrated real-time methane fraction analysis, Prosonic Flow B 200 enables continuous measurement and monitoring of gas flow as well as gas quality. In addition to efficient process control and energy balancing, Heartbeat Technology enables compliance and process safety at all times.

  • The measuring principle is unaffected by gas composition

  • Inline flowmeter designed for wet biogas and digester gas under fluctuating process conditions.

Device properties:

  • Multivariable device: flow, temperature and methane

  • Medium temperature: 0 to 80 °C (32 to 176 °F)

  • Process pressure: 0.7 to 11 bar a (10.2 to 159 psi a)

  • Loop-powered technology

  • Robust dual-compartment housing

  • Plant safety: worldwide approvals



Benefits
  • Integrated real-time methane fraction measurement

  • Optimized for low pressure gas – specialized sensor design

  • No additional pressure loss – full bore design

  • Process transparency – diagnostic capability

  • Convenient device wiring – separate connection compartment

  • Safe operation – no need to open the device due to display with touch control, background lighting

  • Integrated verification – Heartbeat Technology
