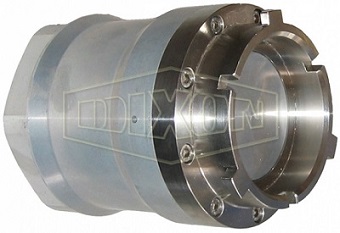

Dixon MannTek Dry Aviation Adapter



Features:
  • Gunmetal coupling ring minimizes the risk of seizure.
  • PTFE bearings between the piston shaft and the piston guide eliminate the risk of seizure.
  • Conical valve seat eliminates the risk of piston blow out when extreme pressure is used.



Construction:
  • High strength aluminum body
  • All wetted parts are in aluminum and stainless steel
  • Bayonet flange and inner parts are stainless steel and aluminum



Applications:

Dry aviation couplings are designed for use in aviation refueling systems.



Reference:

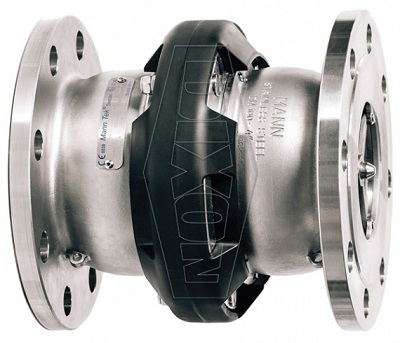

Safety Breakaway Coupling



Applications:
  • Coupling is designed to minimize spillage and damage associated with drive away and pull away incidents.
  • Typical applications: loading rack



Features:
  • Designed to be installed between a fixed point (pipe, pump, manifold) and a hose
  • Coupling automatically senses an excessive load, closes the valves and disconnects
  • High flow rate / low pressure drop



Configuration:
  • Also available in NPT Thread, BSP thread, DN Flange, 300# ASA Flange, Grooved Ends or any combination thereof. Consult Dixon for more information.
  • Optional Non-closure Design available, consult Dixon for more information. The non-closure design is an economical alternative which allows the coupling to break away due to pull-away/drive-away incidents thus protecting piping systems and equipment. The design allows spillage of product in these instances due to the lack of valving in the coupling. Useful applications where non-hazardous product is being conveyed and where there are no environmental concerns.



Reference:

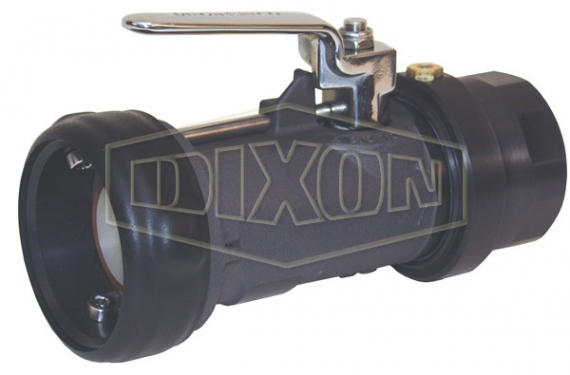

Bayonet Style Dry Disconnect Straight Swivel Coupler



Features:

Helps eliminate the possibility of costly spills



Applications:

Bayonet dry disconnect fittings are ideally suited for the spill-less transfer of petroleum products such as fuel oil, lube oil blending, and tank truck delivery. The design of the Bayco bayonet dry disconnect system ensures a spill free connection, fluid cannot flow until couplings are connected together and the valve is opened. The coupling can then not be disconnected until the valve handle is closed.



Construction:

Anodised hard coated Aluminium material. Swivels have a standard ZERK fitting.



Reference:

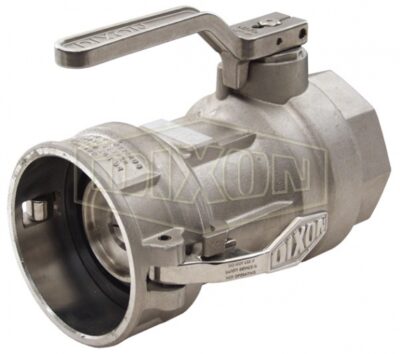

Bayloc® Dry Disconnect Coupler x Female NPT



Features:
  • Coupler has automatic closing poppet assembly
  • Heavy duty construction provides long service life
  • Stainless steel handle allows product exposure to corrosive chemicals or washdown service
  • Strong handle attachment prevents bending of crank assembly
  • Large paddle type cam arms are standard on 3″ fittings, allow for an easy grip
  • Optional coupler lock for handle to prevent unintentional opening.



Applications:
Dry disconnects help prevent spillage from normal or accidental disconnects. A spring loaded sealing device is designed to “snap” closed should the valve become disconnected with the poppet open, significantly limiting liquid loss.

Compatibility & Interchange Data

  • Compatible with most other brands of cam and groove style dry disconnects
  • Fully interchangeable with Kamvalok (OPW trademark) style fittings



Construction:
  • Stainless steel internals
  • Heavy duty stainless steel handle, crank and link.



Use:
  • Use with DBA style adapters
  • Use with standard cam and groove dust plug sized one size larger than the dry disconnect size
  • Use Cam & Groove Dust Plug Size: 4″



Reference:

Dixon MannTek Dry Aviation Coupler



Features:
  • Composite (Polyeten PE-HD 300) plug provides good protection in harsh environments
  • Gunmetal coupling ring minimizes the risk of seizure
  • Riveted piston pin minimizes risk of failure under extreme pressure conditions
  • Protective ring is a specially formulated, weather resistant and electrically conductive rubber compound.



Construction:
  • Body: high strength aluminum
  • Coupling ring: gunmetal (produced to U.S. government bronze specification G)
  • Bayonet flange and inner parts: stainless steel, aluminum
  • All wetted parts are aluminum and stainless steel
  • Stainless steel ball bearings
  • Stainless steel shaft journal embedded in PTFE eliminates seizure
  • PTFE bearings between the driving plate and piston guide eliminate the risk of seizure.



Reference:

ADS Calibrated Gauge Rod



Features:
  • 1/2″ x .065 wt hardened 316 stainless steel
  • Laser engraved scale with 1/4″ graduations
  • Rods come in two sections that screw together at the midpoint
  • Foot marks inscribed on rod at 1′ intervals below the inch mark
  • Heavy duty plastic handle

Available sizes

Available in 4′, 8′ and 12′ lengths

Applications

Used to gauge liquid levels in any mobile tank.
